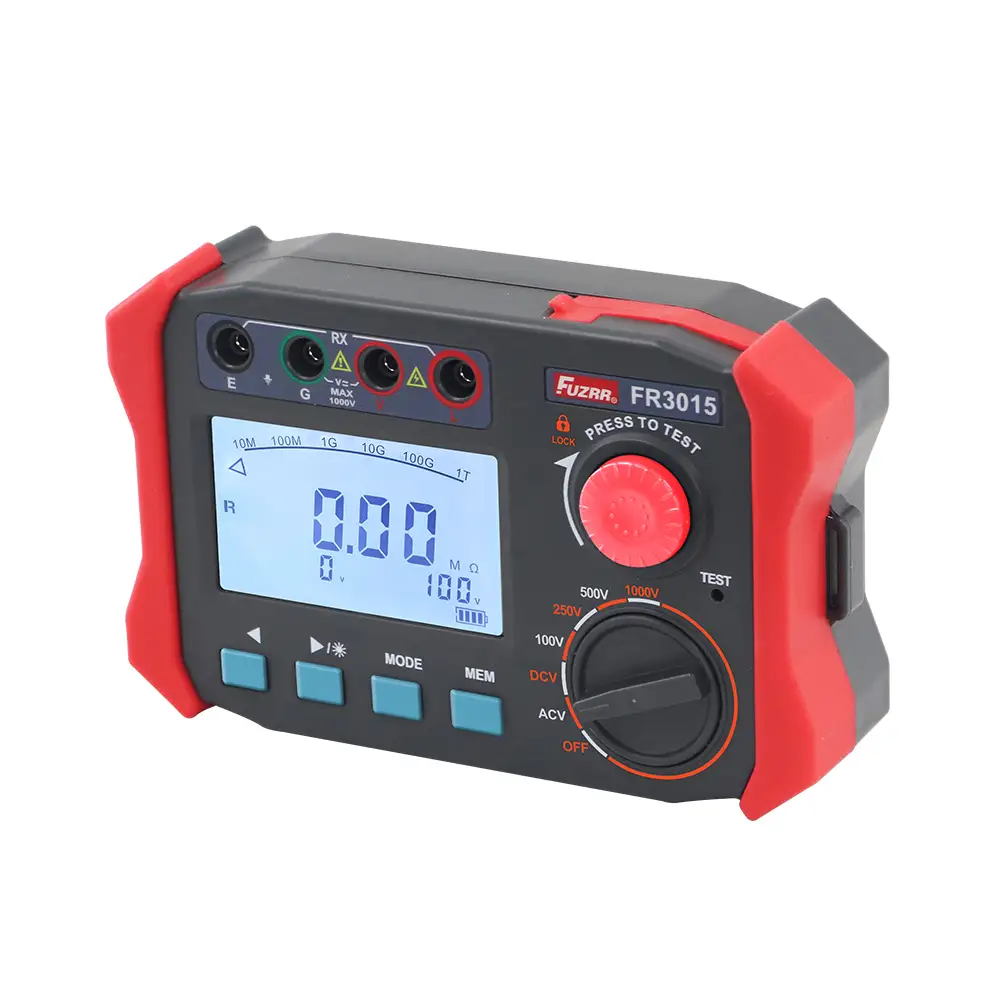

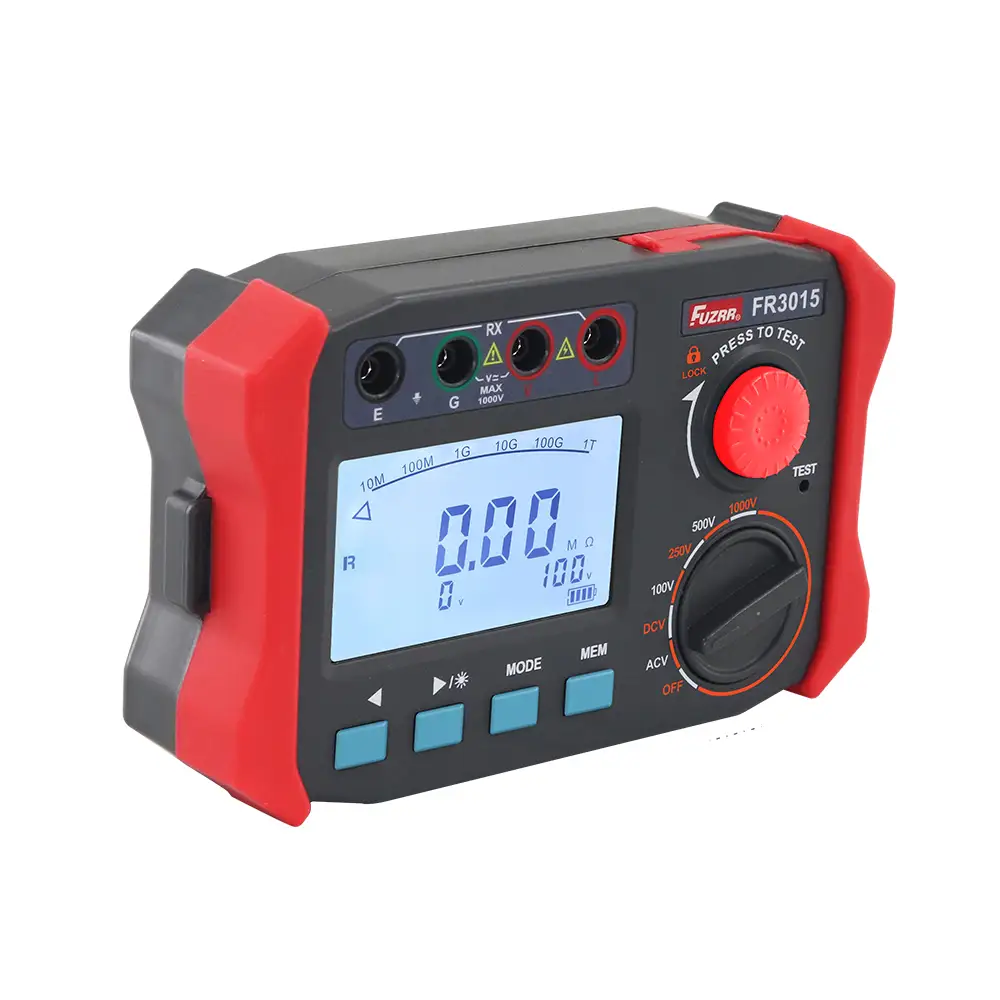

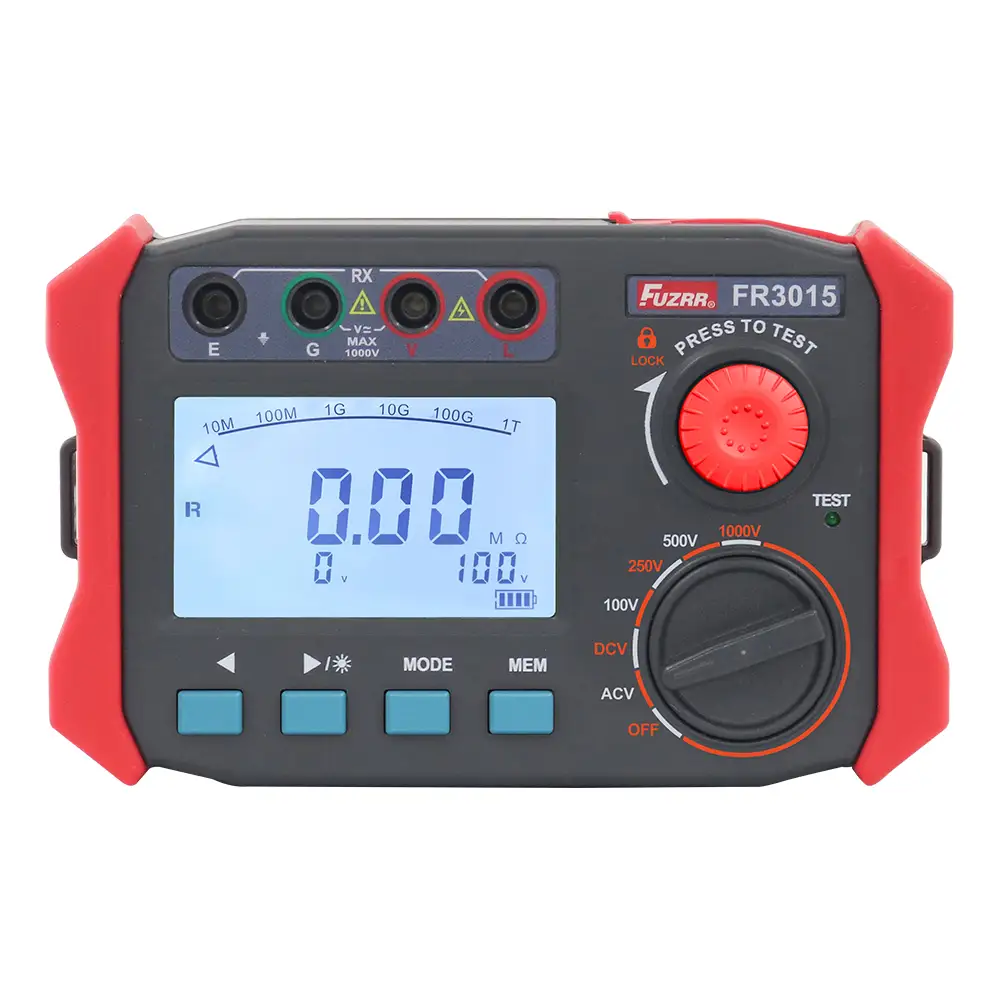

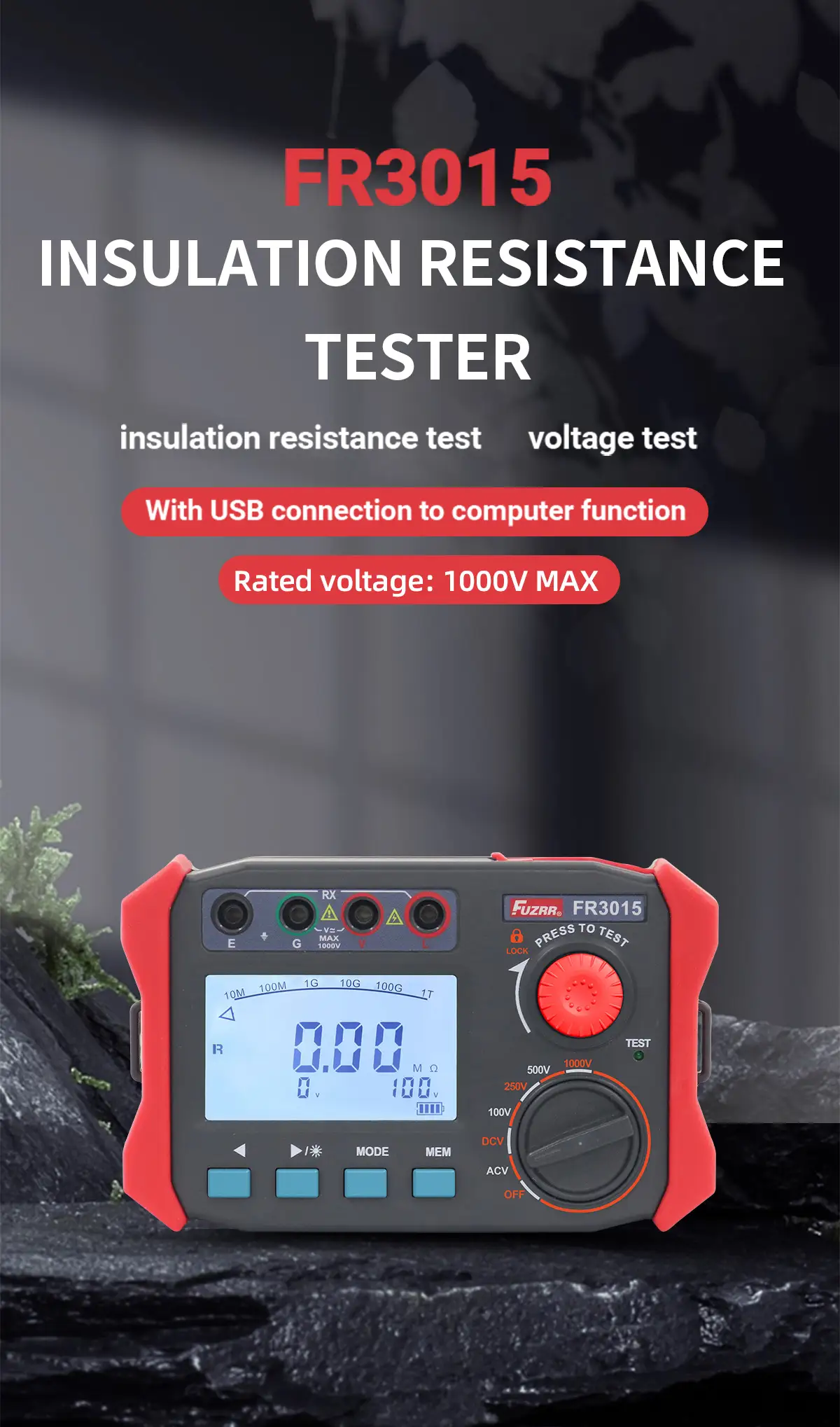

FR3015 Digital Insulation Resistance Tester

Please enable JavaScript in your browser to complete this form.

Model

FR3015

FR3015E

Rated voltage (V)

100-1000V

250-2500V

Insulation resistance range

0.06MΩ-50.00GΩ

0.10MΩ-100.0GΩ

Insulation resistance resolution

0.01MΩ

0.01MΩ

DC voltage range

2.0 ~ 1000V

2.0 ~ 1000V

DC voltage resolution

0.1V

0.1V

AC voltage range

2.0 ~ 750V

2.0 ~ 750V

AC voltage resolution

0.1V

0.1V

Absorption ratio and polarization index measurement

USB data upload function

Data storage

Real-time indicator of battery power

Backlight

Battery low voltage indicator

○ Empty indicates no

● Solid indicates yes

Function

Insulation resistance test, voltage test

Baseline conditions

23℃±5℃, below 75%rh

Rated voltage (V)

100~2500V

Measuring voltage (V)

Rated voltage × (1±10%)

Insulation resistance range

0.06MΩ ~ 100.0GΩ

Insulation resistance resolution

0.01MΩ

DC voltage range

2.0~1000V

DC voltage resolution

0.1V

AC voltage range

2.0~750V

AC voltage resolution

0.1V

Output short circuit current

≥ 1.5mA ( 10 00V)

Absorption ratio and polarization index measurements

Have

Power supply

1.5V ( AA ) alkaline batteries 8 pieces

Backlight

Controllable gray and white screen backlight, suitable for use in dark places

Auto off

Instrument shut down after 15 minutes without operation

Display mode

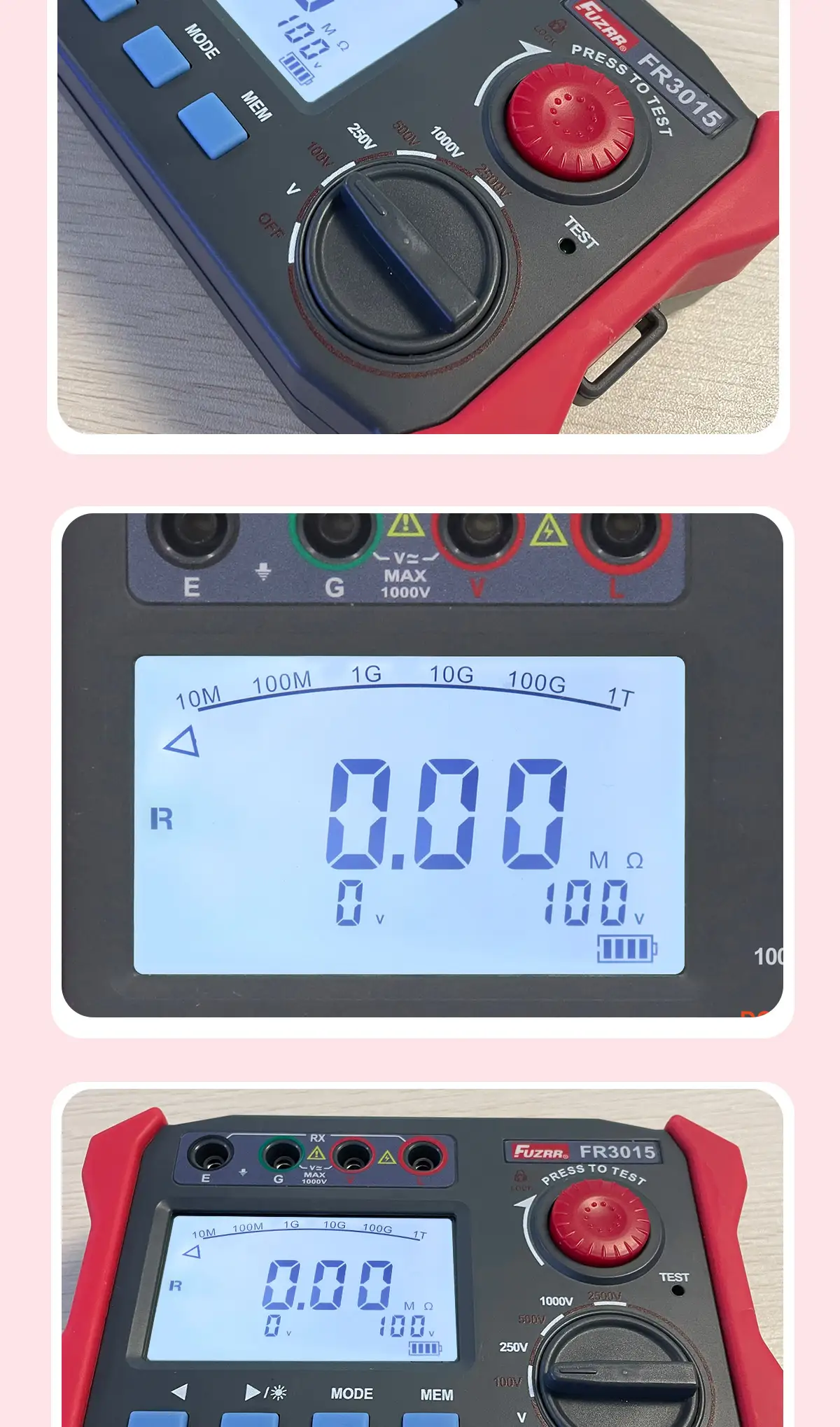

4-digit super large LCD display, gray and white screen backlight

LCD display size

73 mm x 43 mm

Meter size

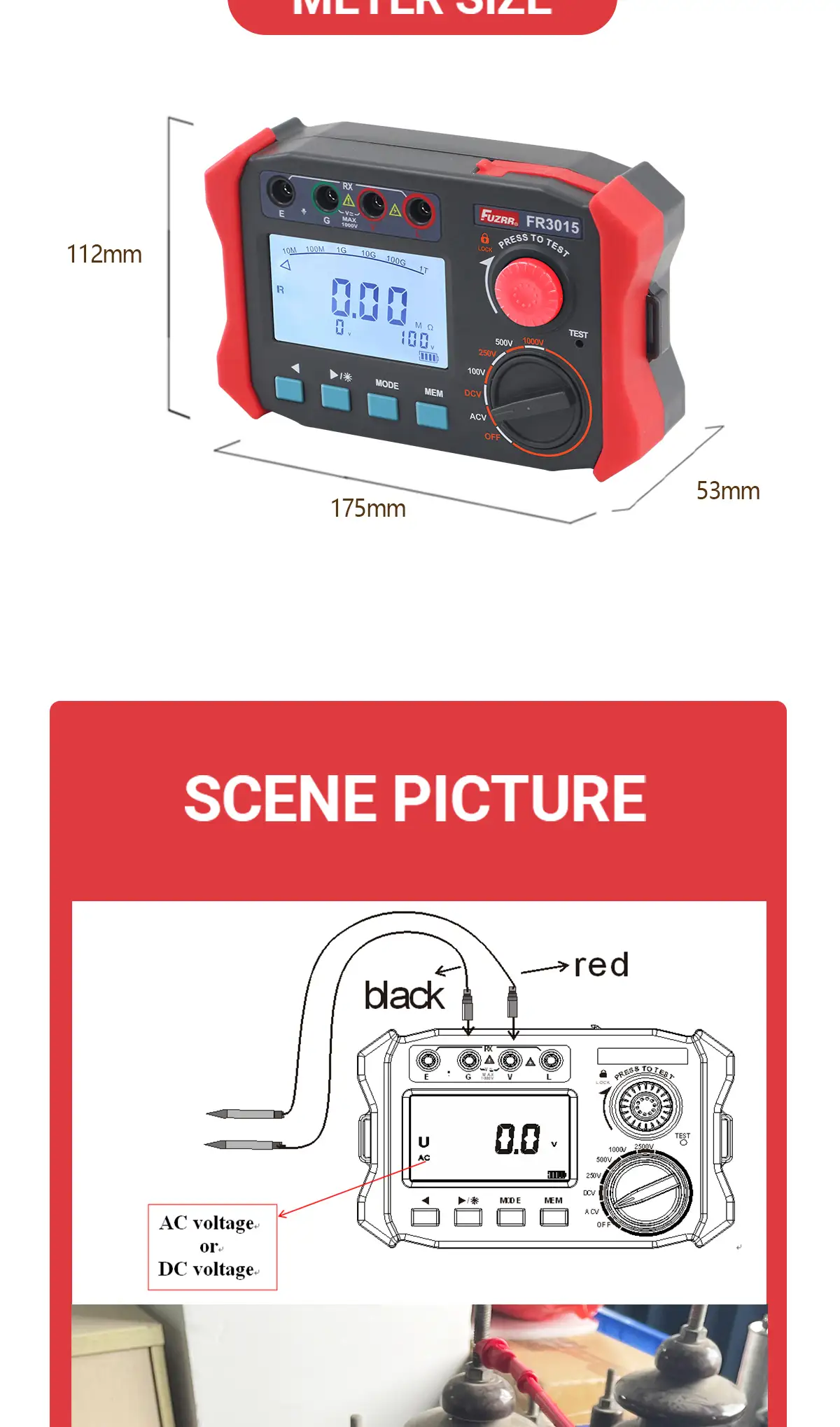

175mm (L)× 112mm (W)× 53mm (H)

Test line

High voltage test line red 1 meter, black 1 meter

USB interface

·

With USB interface, data reading, save record data

Data storage

500 groups, flashing “FULL” symbol means storage is full

Data review

Data query function: “MEM”symbol display

Overflow display

Over-range overflow function:”OL”symbol display

Power consumption

Standby time: 18mA Max (backlight off)



Power on backlight: 43mA Max



Measurement: 326mA Max (with backlight on )

Quality

1230g (including battery)

Battery voltage

The battery voltage is insufficient, and the low battery symbol ”    ” is displayed

Insulation resistance

≥50MΩ (1000V)

withstand voltage

AC3kV/50Hz 1min

Operating Temperature and Humidity

-10℃~+50℃<85%RH

Storage Temperature and Humidity

-15℃~+55℃<90%RH

Suitable for safety regulations

IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
