ES9060 Hand and head mounted near electric alarm

Please enable JavaScript in your browser to complete this form.

 Function

Near electric alarm

Power

CR2032 One button battery

Alarm voltage range

Low voltage: 40-1kV high voltage: 1k~500kV

Alarm distance error

士10cm23℃80%RH benchmark conditions

Working frequency

50Hz/60Hz

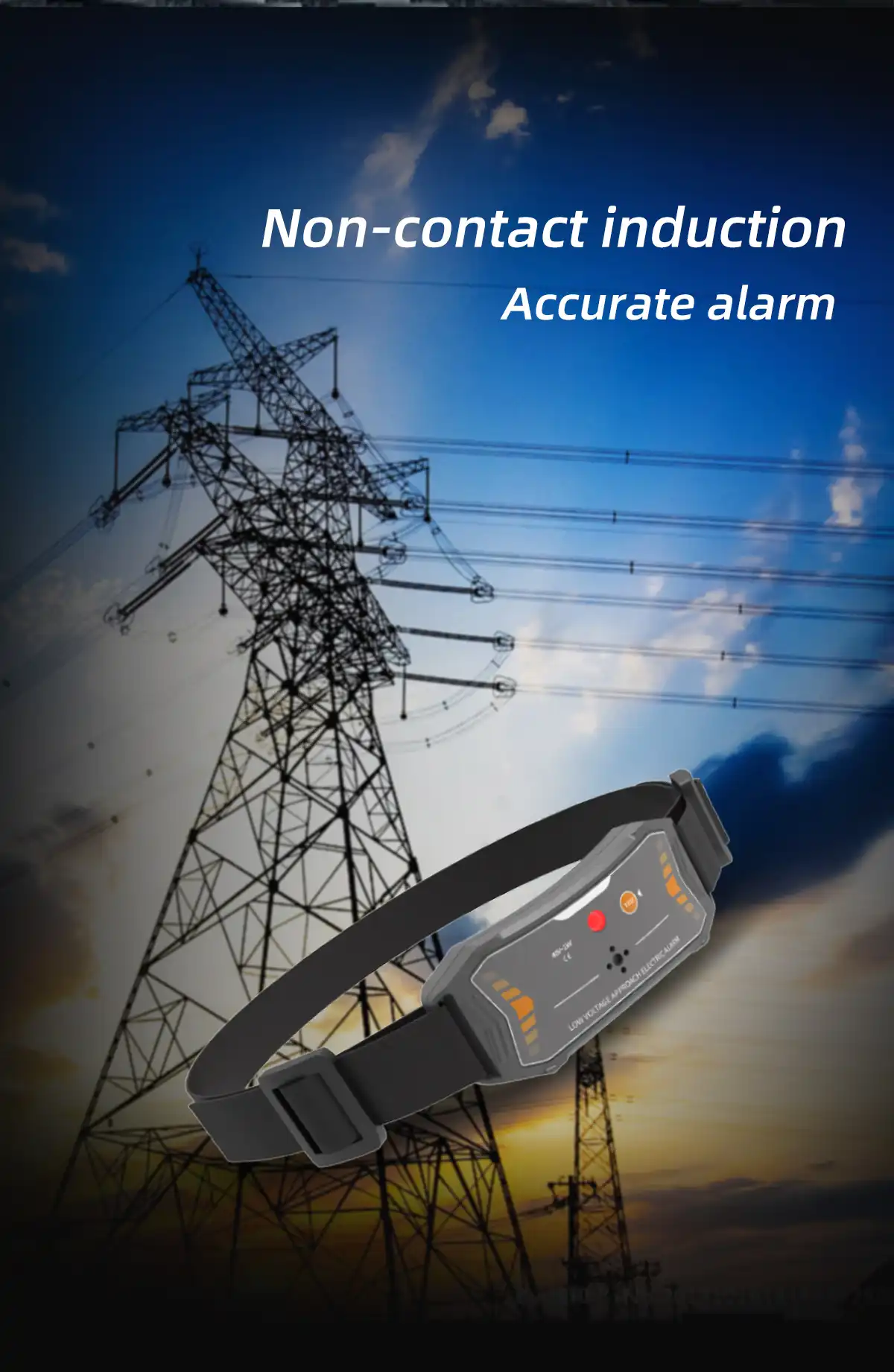

Power inspection method

Non-contact type

Battery life

Continuous work: about 24 hours Standby time: about 12 months

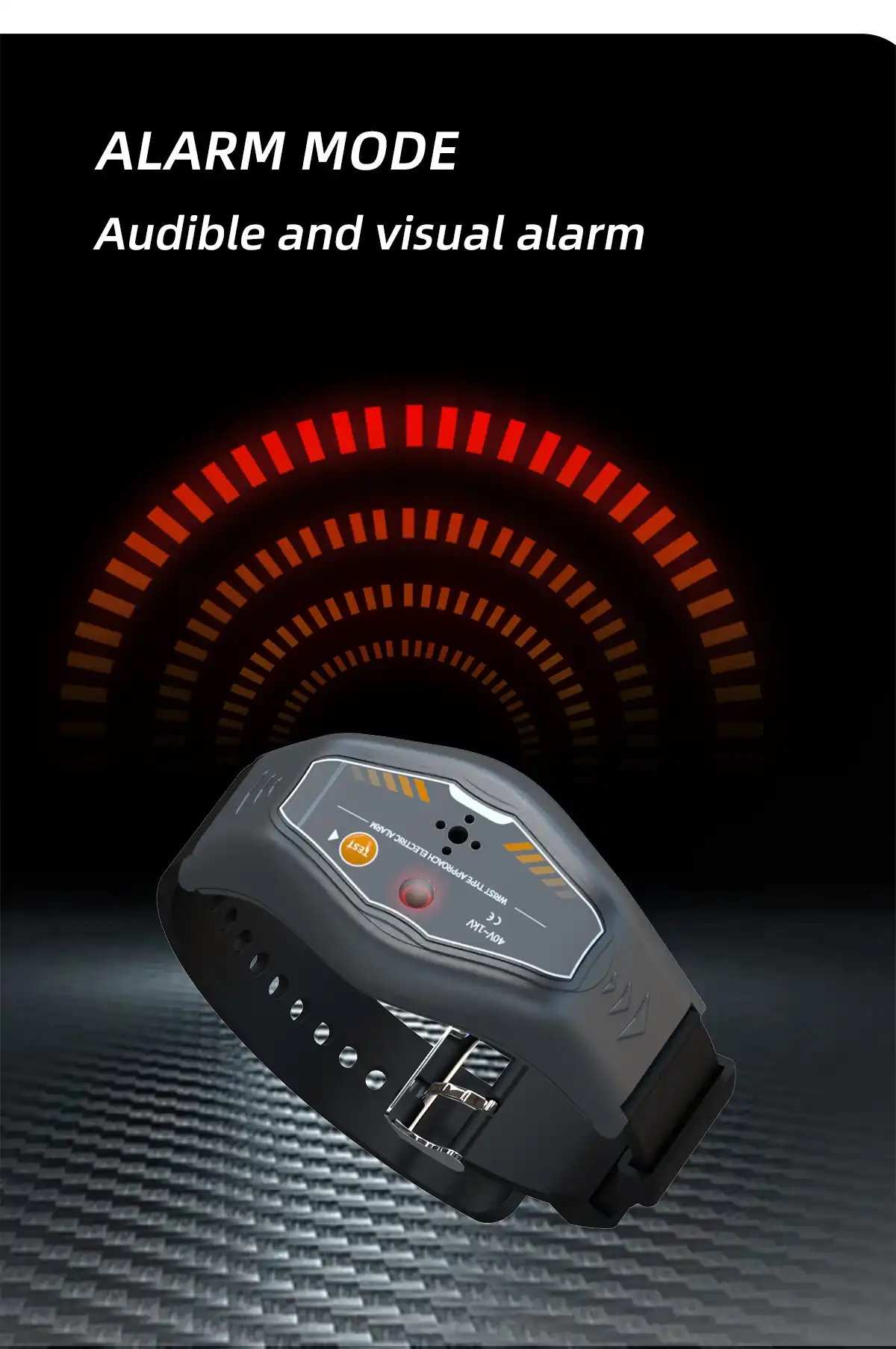

The alarm way

Indicator light :8000XL LED light

Buzzer :60dB(distance: 60CM)

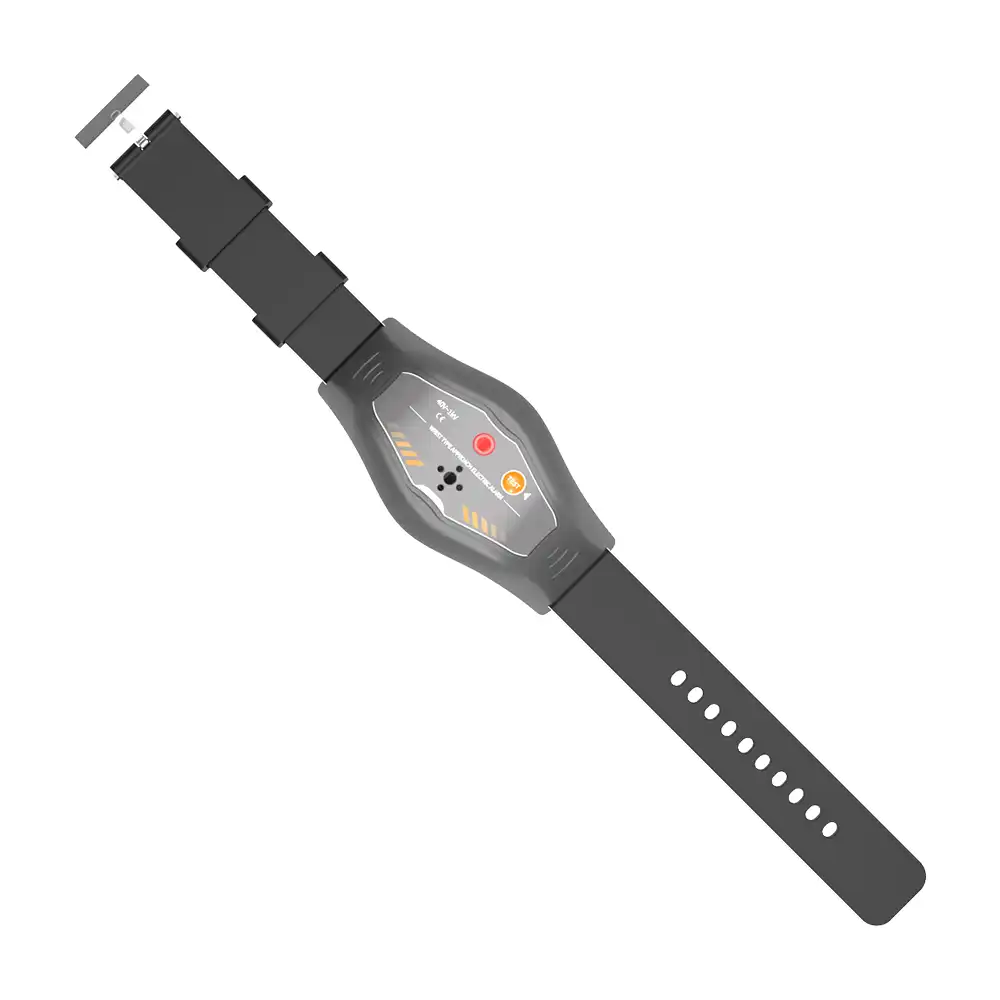

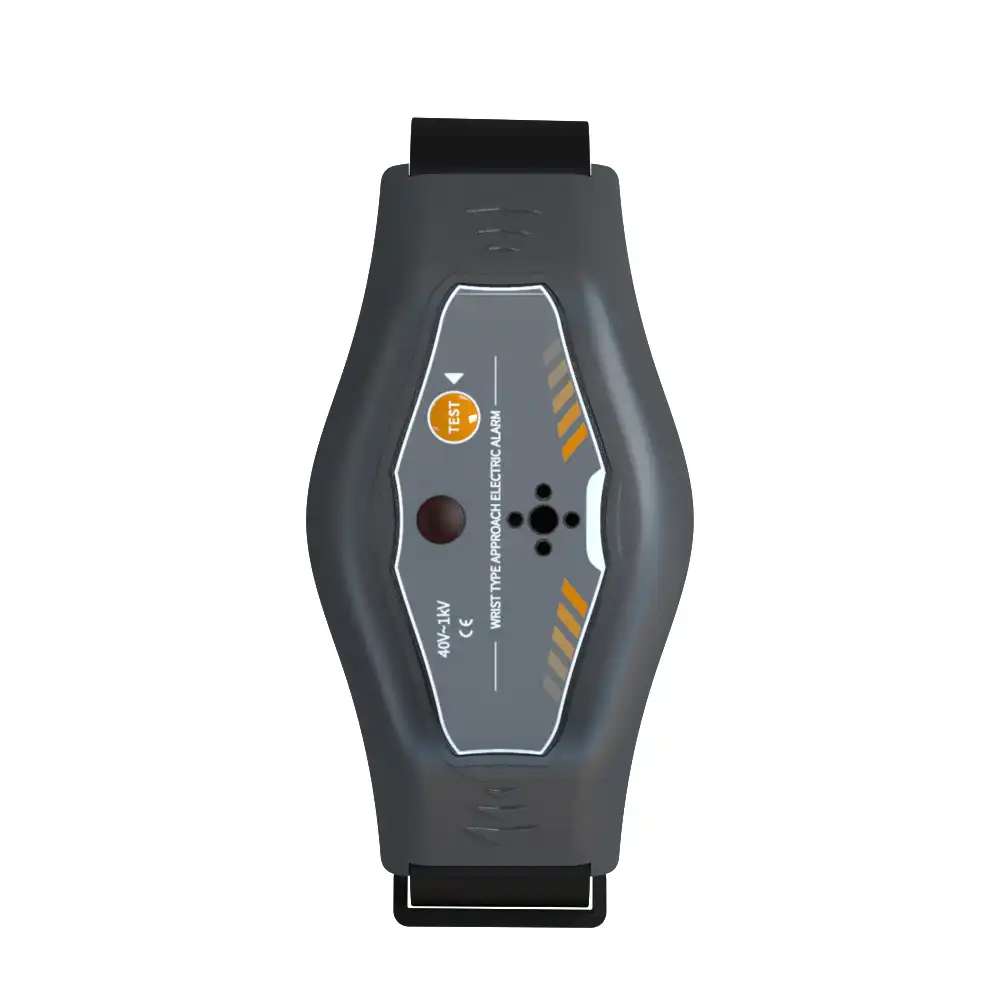

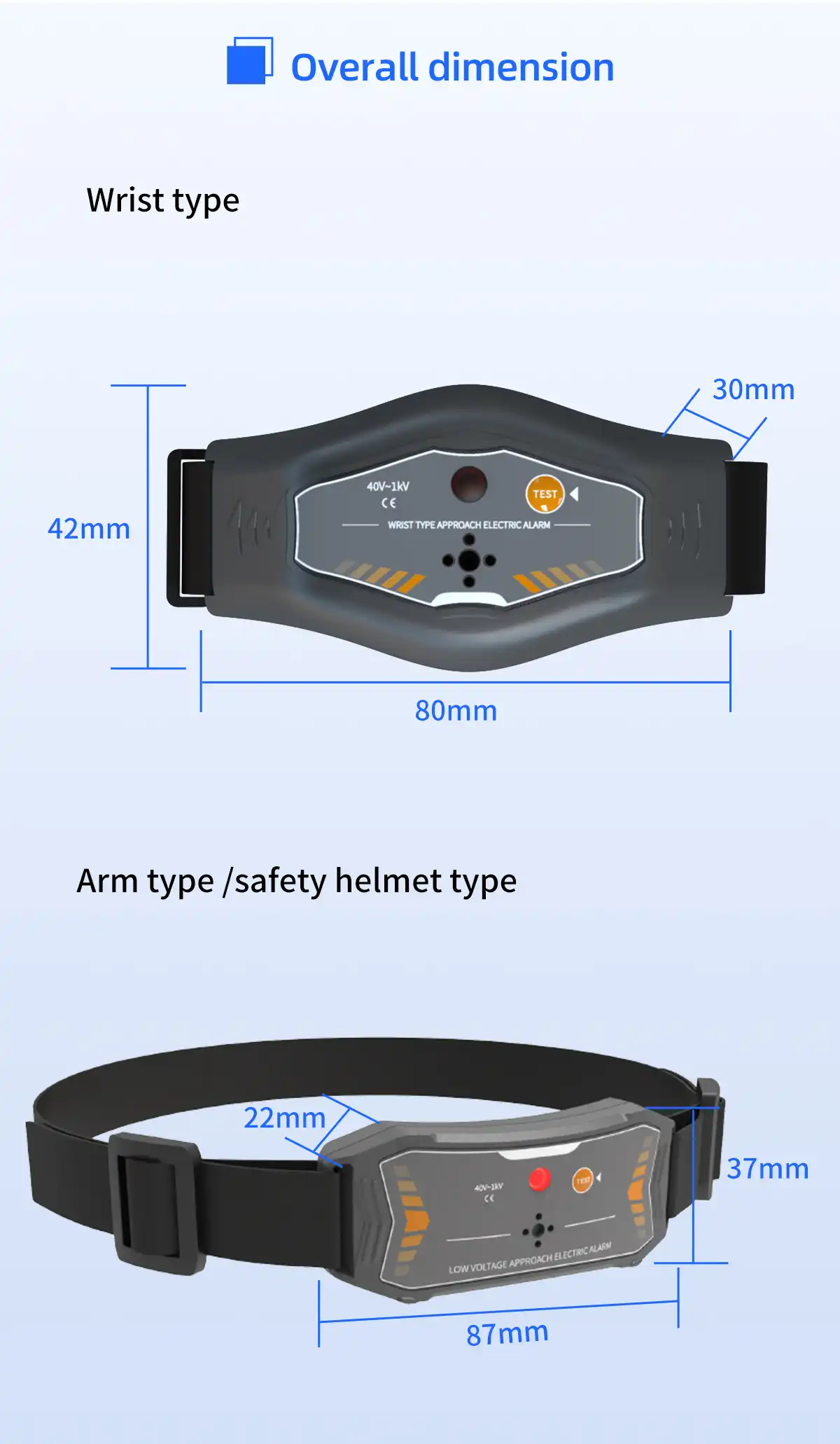

Wrist type

size

80mmX42mmX30mm

Weight

Instrument: about 45g (including battery)

Total mass: approximately 0.073kg (including accessories)

Arm type safety helmet type

size

87X37X22mm

weight

Instrument: about 51g (including battery)

Total mass: approximately 0.083kg (including accessories)

level of protection

IP54

Working temperature and humidity

-10℃~40℃:under 80%RH

Store temperature and humidity

-10℃~60℃;under 70%RH

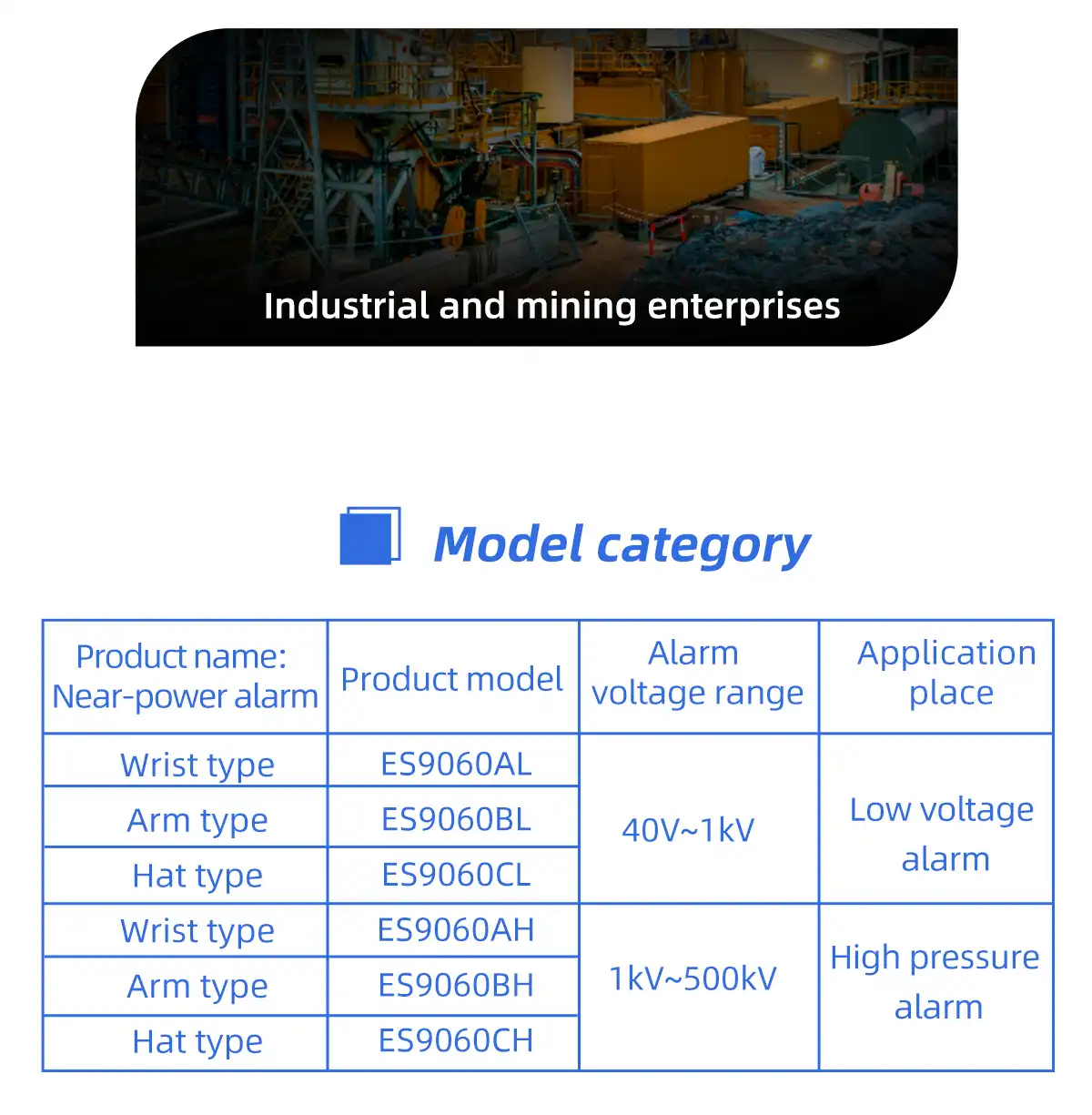

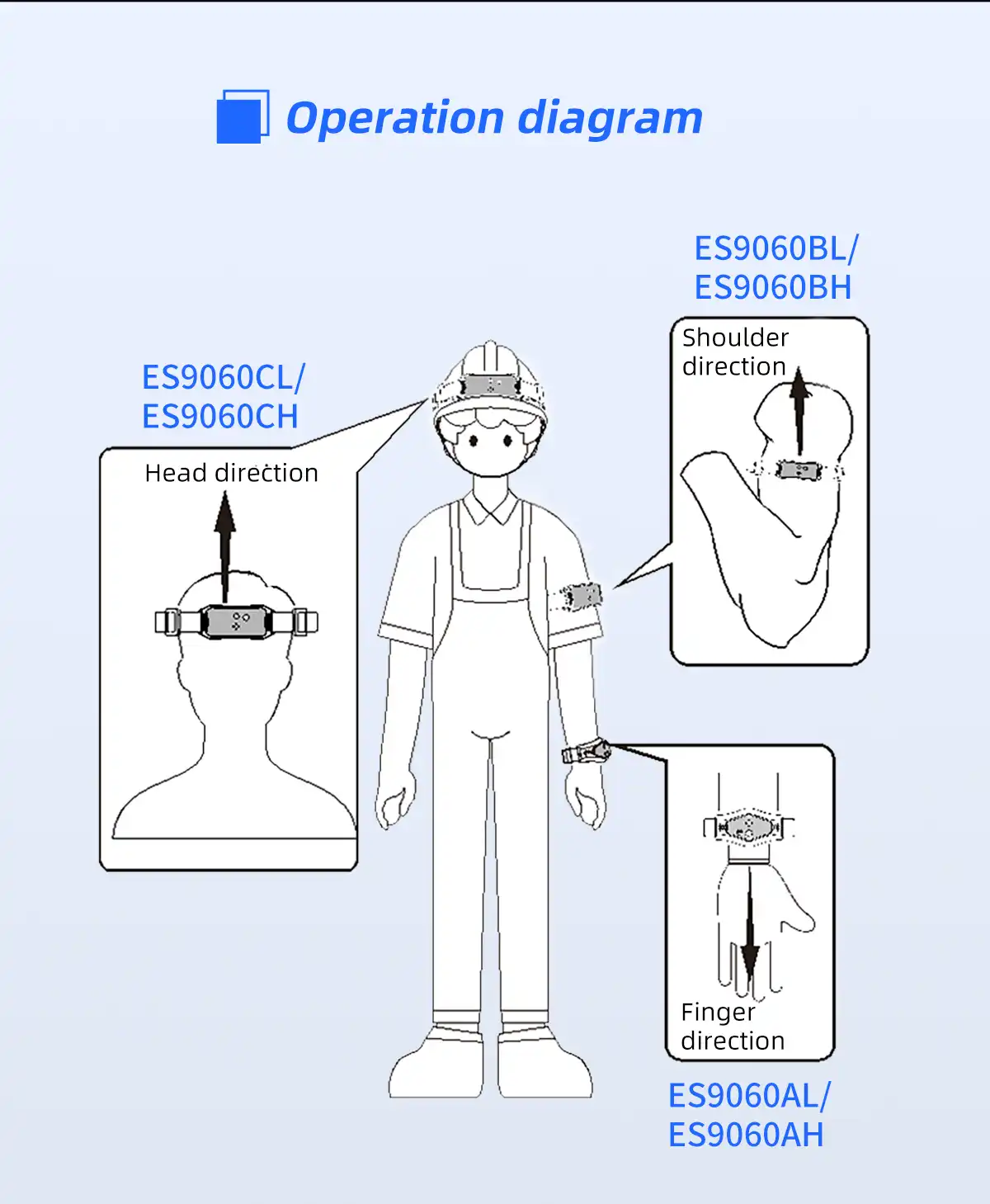

Product name: Near-power alarm

 Product model

Alarm voltage range

Application place

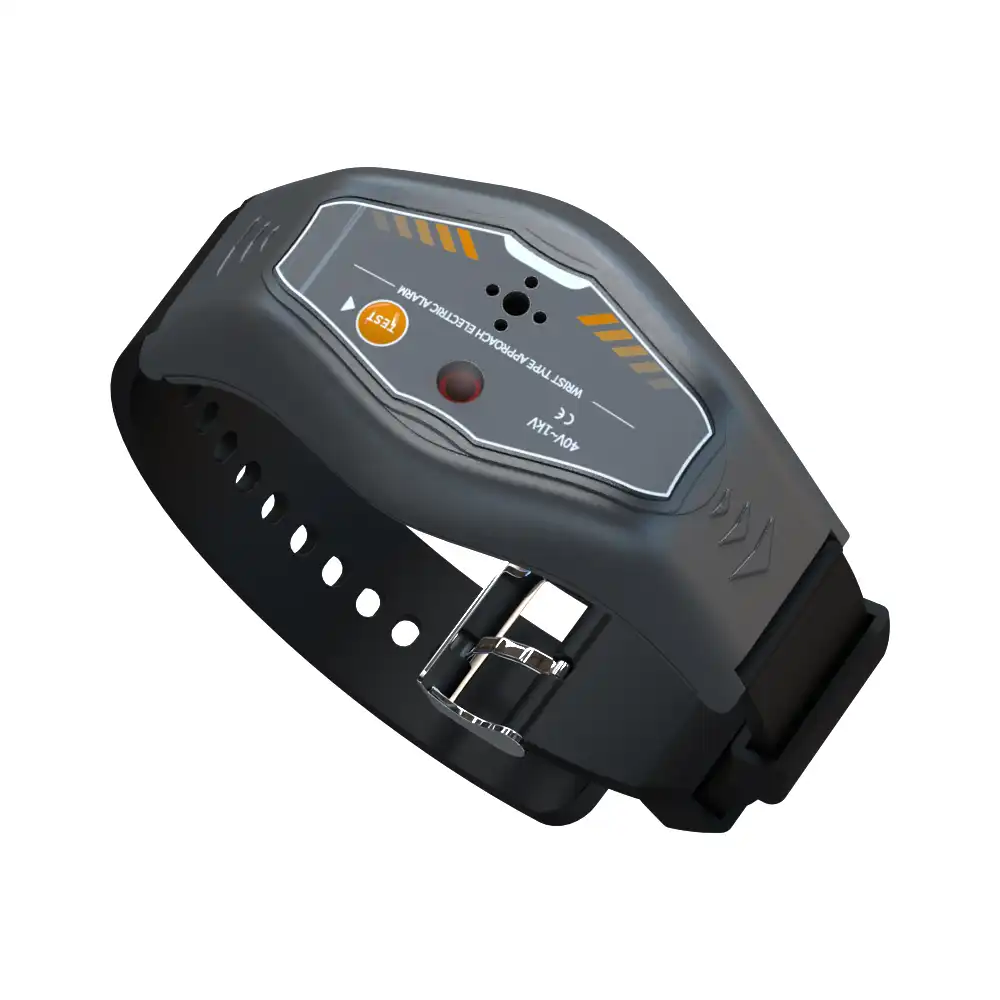

Wrist type

ES9060AL

40V~1kV

Low voltage alarm

Arm type

ES9060BL

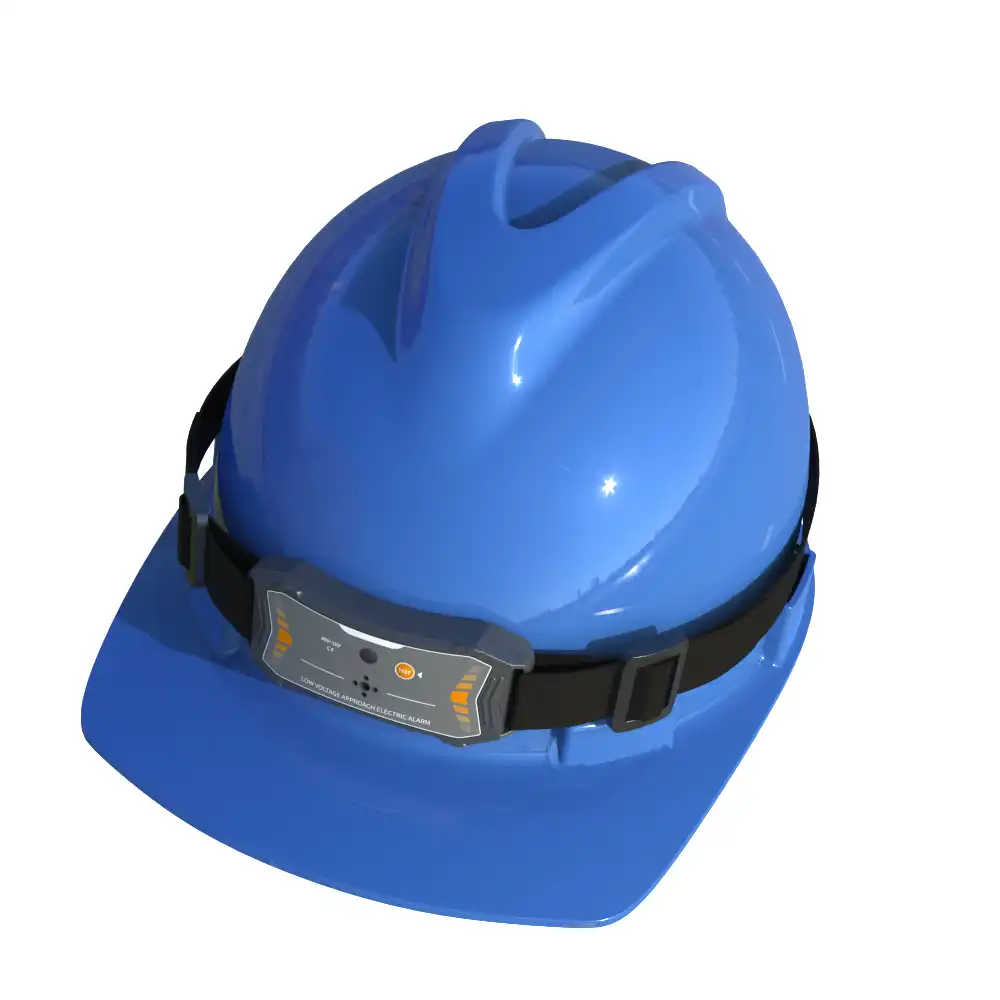

Hat type

ES9060CL

Wrist type

ES9060AH

1kV~500kV

High pressure alarm

Arm type

ES9060BH

Hat type

ES9060CH

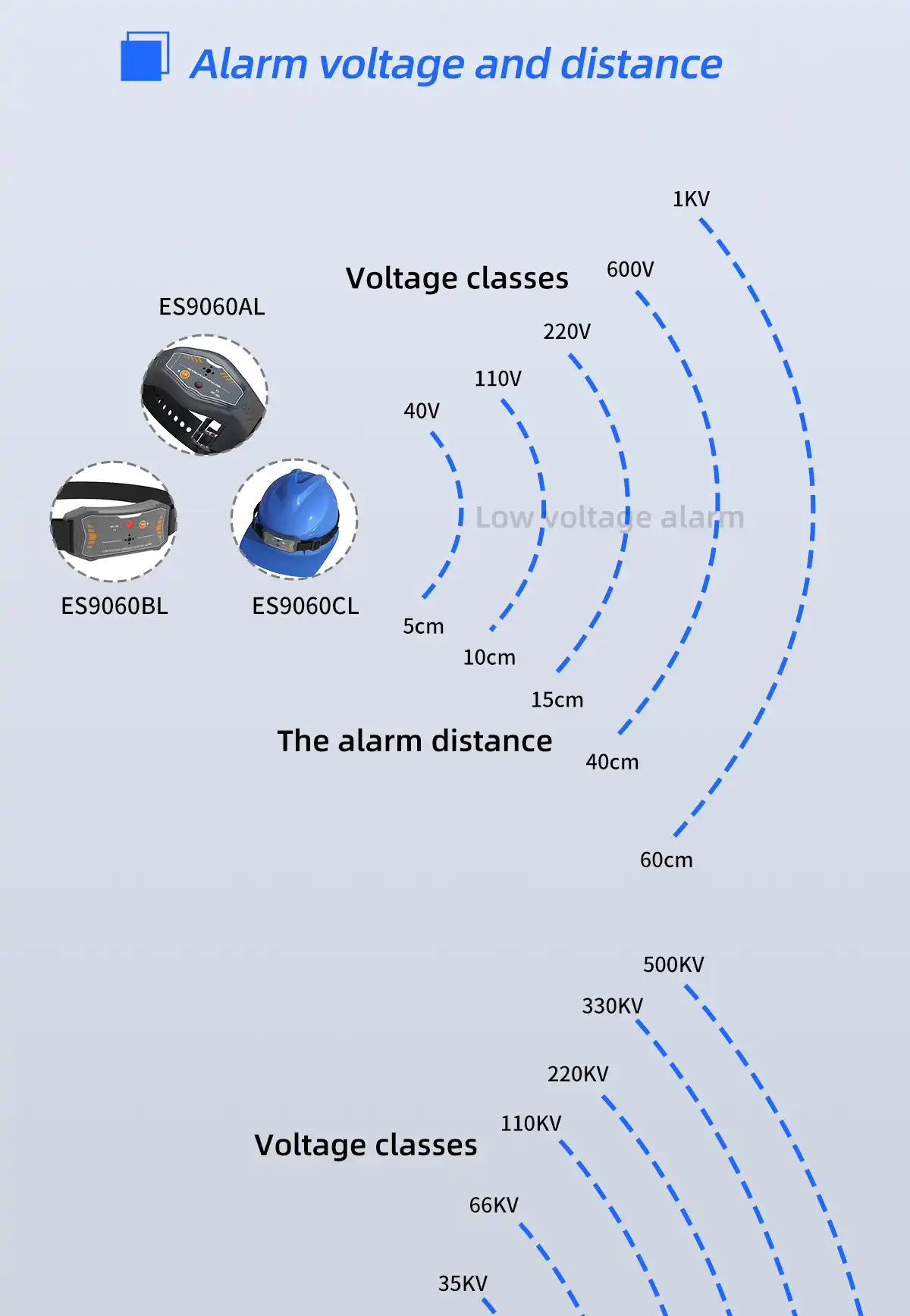

 Product model

voltage classes

 Safe distance

The alarm distance

ES9060AL     ES9060BL     ES9060CL

40V



5cm

110V



10cm

220V



15cm

600V



40cm

1KV



60cm

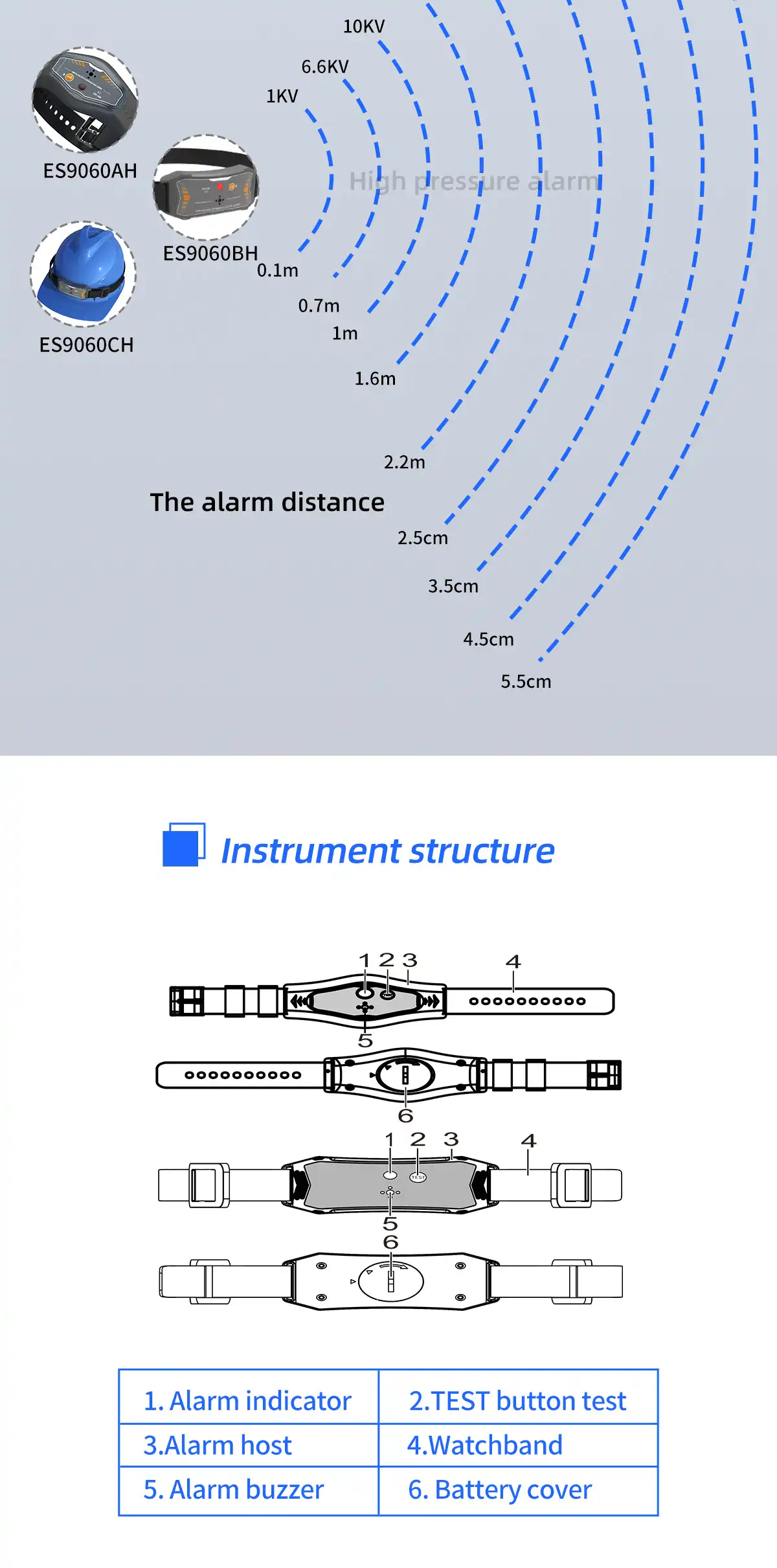

ES9060AH     ES9060BH    ES9060CH



1KV



0.10m

6.6KV



0.70m

10KV

0.70m

1.00m

35KV

1.00m

1.60m

66KV

1.50m

2.20m

110KV

1.50m

2.50m

220KV

3.00m

3.50m

330KV

4.00m

4.50m

500KV

5.00m

5.50m
